Electric Brake DC Warner Type SM-024-0035-WT Position Speed Encoder Assembly

This is a precisely made DC electric brake assembly. The shaft of this brake motor is connected to the system drive motor thru the flat belt brake pully. When the brake coils are energized they stop rotation fast. The rotational speed or the change is available from the attached slotted disc encoder wheel, optocoupler assembly, so exact brake characteristic be precisely controlled. This assembly includes the brake motor with the attached slotted disc encoder wheel on the shaft and the optocoupler PCB. First come first serve. Only one available.

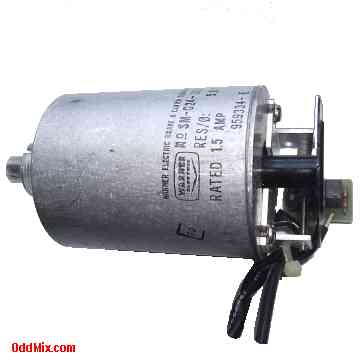

Warner Type SM-024-0035-WT DC Electric Brake Position Speed Encoder Assembly [8 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Type SM-024-0035-WT DC Electric Brake Assy
MFR: Warner Electric Brake and Clutch Co.
Rated: 1.5 A - Attached pulley
Resistance/Phase: 5 Ohms - Impedance protected
Four wire terminal for brake - Ball bearings
Slotted disc encoder wheel attached
Optocoupler on small PCB attached
Size: 51 Dia, 104.5 L [mm]
Shaft Size: 6.25 Dia, 102 L [mm]
Weight: 428 Grams

Notes:

Used Price: $60 One available
S/H included within continental US
