Motor DC Yaskawa Minertia UGJMEE-02SOD12 PM Absolute Rotary Encoder High Torque

This is a precisely made, quality, high power, high torque, PM [Permanent Magnet] DC motor with a built in rotary absolute encoder and a DC power line filter and connector terminal. Motor is made by Yaskawa Electric in Japan. The nine and a half millimeter diameter shaft is forty millimeters long. Motor begins to rotate at around 3.0 Volt, while it's no-load current is around 0.2 Amperes. This low RPM motor drives many loads under total computer control smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve only one available.

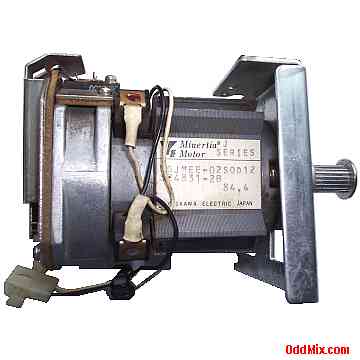

Yaskawa Minertia UGJMEE-02SOD12 Motor PM DC Absolute Rotary Encoder High Torque [11 KB]


Minertia UGJMEE-02SOD12 PM DC Motor
MFR: Yaskawa Electric - Made in Japan
Motor begins to rotate: 3.0 VDC
Motor current: approx. 0.2 Amperes
Permanent magnets - Sleeve bearings
Two pin Connector
Size: 66 W, 76 H, 135 L [mm] with shaft
Shaft size: 9.5 dia, 40 L [mm]
Weight: 1054 [grams]


Used, excellent working condition
Price: $200 - Only one available
S/H included within continental US
