Motor Stepping Airpax A82355 18 Degree Step Angle 12 VDC Precision Sine Generator

This Airpax A82355 is a well made precision stepping motor. It operates from 12 VDC with an 18 degree step angle. Motor has some numbers on the body the Other No.: 8404 and C/N: 6060218. The 3.5 millimeter diameter shaft is six millimeter long and it has a twelve toothed brass gear. The motor has four color coded wire terminals and is very good quality. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.

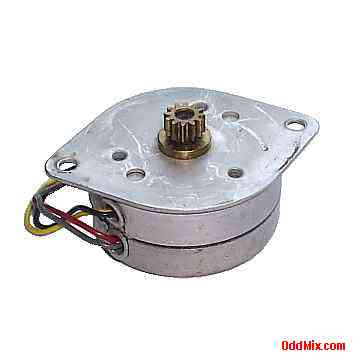

Stepping Motor 18 Degree Step Angle 12 VDC Airpax A82355 Precision Sine Generator [8 KB]


Airpax A82355 Stepping Motor
MFR: North American Philips Corp
Step Angle: 18 Degrees
Coil Resistance: 154 Ohms
Voltage: 12 VDC
Other No.: 8404
C/N: 6060218 - all metal
12 tooth brass gear attached to shaft
Terminals - 4 color coded wires
Brass Sleeve bearings
Size: 35 Dia, 22 L [mm] (with gear)
Shaft size: 3.5 dia, 6 L [mm]
Weight: 68 Grams


Used, excellent working condition
Price: $50 - Only one available
S/H included within continental US
