OddMix IconOddMix ELECTRIC MOTOR - STEPPING

Motor Stepping Alps AP68 18 Degree Step Angle Four Phase 12 VDC High Power

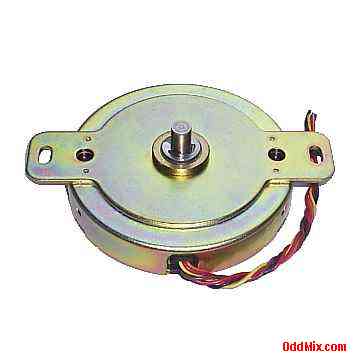

This Alps AP68 is a well made precision four phase stepping motor. It operates from 12 VDC with an 18 degree step angle. Motor has some numbers on the body the LOT No.: 43Q0F and what may be a serial number 411984. The six millimeter diameter shaft is ten millimeter long and it is supported by a substantial brass sleeve bearing. The motor has six color coded wire terminals and is very good quality. First come first serve. Only one available.
Stepping Motor 18 Degree Step Angle Four Phase 12 VDC Alps AP68 High Power [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

ALPS AP-68 Stepping Motor
MFR: Alps Electric Co
Step Angle: 18 Degrees
Coil Resistance: 33 Ohms
Voltage: 12 VDC
Wire terminals 6 color coded wires
Brass sleeve bearings
Made in Japan
Size: 68 Dia, 25 L [mm] (with shaft)
Shaft size: 6 dia, 10 L [mm]
Weight: 177 Grams

Notes:

Unused, excellent working condition
Price: $80 - Only one available
S/H included within continental US
