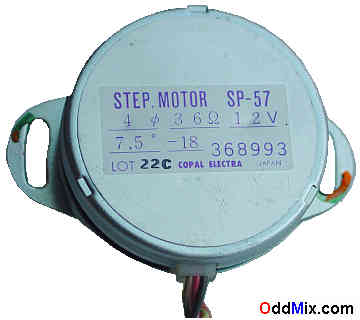

Motor Stepping Copal Electra SP-57 12 VDC Four Phase 7.5 Degree Step 63 Ohms

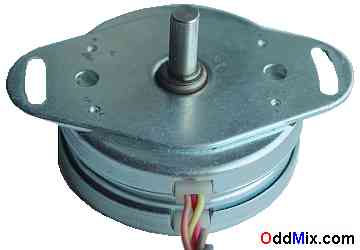

This Copal Electra SP-57 is a robust, quality, made in Japan, precision, four phase stepping motor. The 6.5 millimeter diameter shaft is 17 millimeter long and it is supported by a substantial bronze sleeve bearings. The motor has six color coded wire terminals grouped 2x3 wires. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • SP-57 Stepping Motor • MFR: Copal Electra Corp. • Wire terminals - Dual 2x3 group • 6 color coded wires • Bronze sleeve bearings • Plated finish • Type: Four Phase • Operating Voltage: 12 VDC • Resistance per Phase: 36 Ohms • Step Angle: 7.5 °/Step • High quality - Made in Japan • Size: 57 Dia, 42 L [mm] (with shaft) • Shaft size: 6.5 dia x 17 L [mm] • Size Overall: 80, 42 L [mm] (with shaft) • Weight: 240 Grams Notes: • Used, excellent working condition • Price: $80 - Only one available • S/H included within continental US |
