OddMix ELECTRIC MOTORS - STEPPING |

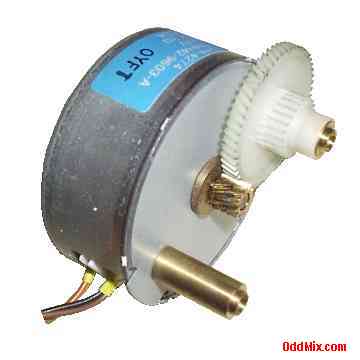

Motor Stepping FDK QH4-4274 SMH42-9603-A 24 Volt 2.3 Ohms 4 Pin Connector Canon
This FDK QH4-4274 SMH42-9603-A is a well made 24 Volt precision stepping motor with 2.3 Ohms windings. This type motor is replacement part for in some Canon printer/scanner equipment like the S400. It has an metal housing and sintered bronze sleeve bearings. The 3 millimeter diameter shaft is 7 millimeter long and it has an eleven toothed brass gear and a coupled plastic gear (included). The motor has four color coded wire terminals with a miniature four pin inline connector. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • Stepping Motor - QH4-4274 • Type: SMH42-9603-A • MFR: FDK Corp • Canon replacement part • Shaft size: 3 dia, 7 L [mm] • Coil Resistance: 2.3 Ohms • 11 tooth brass gear attached to shaft • Connector 4 color coded wires • All metal with Sleeve bearings • Size: 42 Dia, 26 L [mm] (with gear) • Weight: 96 Grams Notes: • Used lightly, excellent working condition • Price: $30 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
