Motor Stepping Matsushita KP39HM4-016 FMD00811B4 3.6 Degree 12 VDC Japan Servo

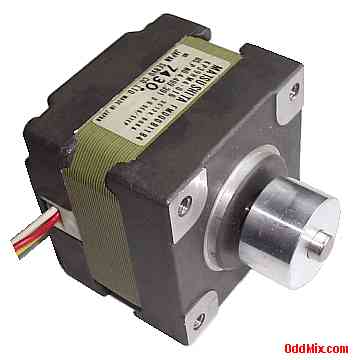

This is an all metal, precision made, Made in Japan high quality stepping motor built by Japan Servo Co. Ltd. for Matsushita with all ball bearings. It operates from 12 VDC with 3.6 degree step angle. The five millimeter diameter shaft is fourteen millimeter long and it has a 17 [mm] diameter aluminum cylinder attached. The motor has four color coded wire terminals terminated in a single four pin connector. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • KP39HM4-016 FMD00811B4 - Stepping Motor • MFR: Japan Servo for Matsushita Made in Japan • Step Angle: 3.6 Degrees per step • Voltage: 12 VDC - Current: 0.08 A • Terminals - 4 color coded wires with connector • Ball bearings - Made in Japan quality • Size: 39 W, 39 H, 49 L [mm] (with shaft) • Shaft size: 5 dia, 14 L [mm] - with aluminum cylinder • Weight: 174 Grams Notes: • Used, excellent working condition • Price: $80 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
