OddMix IconOddMix ELECTRIC MOTOR - STEPPING

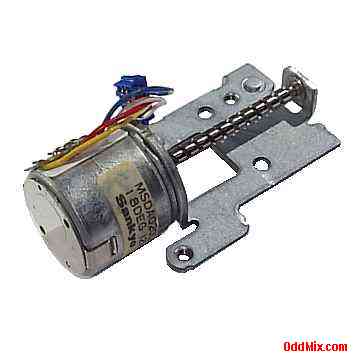

Motor Stepping Sankyo MSDAO20L62 18 Degree Step Angle 12 VDC Precision Miniature

This Sankyo MSDAO20L62 is a well made precision stepping motor. It operates from 12 VDC with an 18 degree step angle. The 3 millimeter diameter stainless steel shaft is 35 millimeter long and it has a spiral cut. The motor has four color coded wirea soldered to its terminals with a connector and it is a very good quality. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Stepping Motor 18 Degree Step Angle 12 VDC Sankyo MSDAO20L62 Precision Miniature [10 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

MSDAO20L65 Stepping Motor
MFR: Sankyo
Step Angle: 18 Degrees
Voltage: 12 VDC
Shaft is a stainless lead screw
Solder terminals - wires attached
Brass Sleeve bearings, connector
Size: 20 Dia, 55 L [mm] (with lead scew)
Shaft size: 3 dia, 35 L [mm]
Weight: 35 Grams

Notes:

Used, excellent working condition
Price: $30 - Only one available
S/H included within continental US
