Motor Stepping Sanyo 103-820-2 IBM P/N 2526734 2 Degree 4.5 V DC Step-Syn

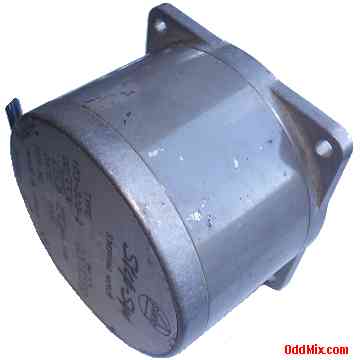

This is an all metal, precision, made in Japan quality, Step-Syn synchronous stepping motor built with all ball bearings. It operates from 4.5 V DC, 1.5 A with 2 degree step angle. Motor type No. is: 103-820-2 and the IBM P/N: 2526734. The 9.5 millimeter diameter shaft is 30 millimeter long. A 38 Dia [mm] pulley for flat belt is also included. The motor has six color coded wire terminals. This motor capable to develop a great torque and can also be used to continuously run on AC input with a capacitor. Stepping motors make excellent low distortion, high power, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • 103-820-2 Step-Syn Synchronous Stepping Motor • IBM P/N: 2526734 • MFR: Sanyo Denki Co. Ltd. Made in Japan • Steps: 2 Degree each • Voltage: 4.5 VDC, 1.4 A • Terminals - 6 color coded wires • Ball bearings • Size: 85.5 Dia, 82.5 W, 82.5 H, 92 L [mm] (with shaft) • Shaft size: 9.5 dia, 30 L [mm] • Pulley 38 Dia [mm] for flat belt - included • Weight: 1373 Grams Notes: • Used, excellent working condition • Price: $120 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
