Motor Stepping Shinano Kenshi STH-39D122-04 1.8 Degree Step 12 VDC 6 Wire Precision

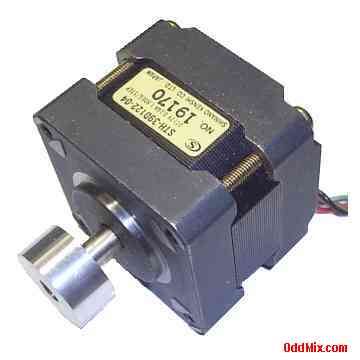

This is an all metal, miniature, precision quality stepping motor built with all ball bearings. It operates from 12 VDC with 1.8 degree step angle. Motor type No. is: STH-39D122-04. The five millimeter diameter shaft is fourteen millimeter long and it has an aluminum cylinder attached. The motor has six color coded wire terminals terminated in a single six pin connector. This is one of the best made motor in the OddMix collection! Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only two available.
Stepping Motor 1.8 Degree Step 12 VDC 6 Wire Shinano Kenshi STH-39D122-04 Precision [8 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

STH-39D122-04 Stepping Motor
• MFR: Shinano Kenshi Co. Ltd. Made in Japan
• Step Angle: 1.8 Degrees
• Voltage: 12 VDC
• Current: 0.16 A
• Terminals - 6 color coded wires
• Ball bearings
• Size: 39 W, 39 H, 49 L [mm] (with shaft)
• Shaft size: 5 dia, 14.5 L [mm] - with aluminum cylinder
• Weight: 222 Grams - with pulley

Notes:

• Used, excellent working condition
• Price: $80 each - 2 available
S/H included within continental US
