OddMix ELECTRIC MOTOR - AC |

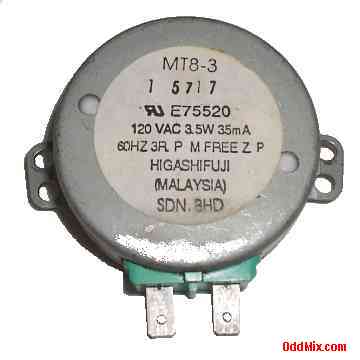

Motor AC Higashifuji MT8-3 Synchronous 120V 60 Hz 3 RPM 3.5 W Microwave Tray
This is a synchronous geared motor made by Higashifuji. It is in many microvawe ovens for rotating the glass tray. The well made motor's type number is MT8-3 and operates at 60 Hertz frequency. With the internal gearing it rotates at 3 RPM [Revolutions Per Minute] at a 120 VAC (nominal) line voltage. Power consumption is 3.5 Watts, 35 mA at 60 Hz line frequency. For a replacement, show-and-tell, or for some projects, this may be a nice motor to have. Also a good parts source.
Features: • Synchronous Motor AC MT8-3 • MFG: Higashifuji • Voltage: 120 VAC, 3.5 Watt, 35 mA at 60 Hz • Rotation: 3 R.P.M. at 60 Hz • Slip-on terminals • Slide bearings • Size: 48.5 Dia, 65 W, 25 H [mm] with shaft • Shaft Plastic D shape • Size: 7 Dia, 6 L [mm] • Weight: 67 Grams Notes: • Used • Price: $15 • One available • S/H included within continental US |
