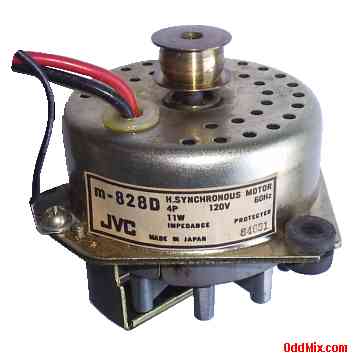

Motor AC Synchronous JVC M-828D Induction 120V Audio Equipment Replacement

This is an exceptional high quality, AC, synchronous, studio audio equipment replacement induction motor. It is an original JVC motor, made in Japan that was made for long disappeared high end tape recorders and record players. To provide the best immunity against unwanted speed changes the rotor of this motor is on the outside of the stationary windings. The 4.5 [mm] Dia shaft has an attached 13.5 [mm] Dia brass pulley made for flat belt use. The capacitor run motor delivers a stable, single RPM, and it could operate continously at a 120 VAC (nominal) line voltage.

---

SPECIAL DIFFICULT TO FIND REPAIR PART Features: • M-828D Induction Motor AC Synchronous • MFG: JVC • Made in Japan Quality • Voltage: 120 VAC • Three wire connection • Bronze bearings • Brass Pulley, Rubber shock mounts • Size: 58 W, 65 L, 65 H [mm] with shaft • Shaft Size: 4.5 Dia, 10 L [mm] • Weight: 366 [Grams] Notes: • Used • Price: $60 • One available • S/H included within continental US

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
