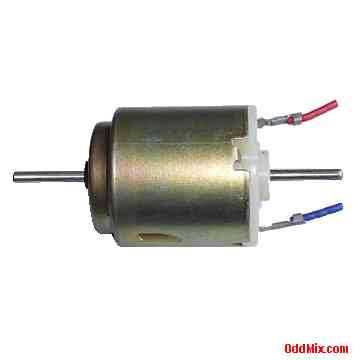

Motor DC Mabuchi RE-26 PM Dual Shaft CW Rotating Model Race Car Boat Driver

This is a precisely made, miniature, PM (Permanent Magnet) dual shaft, DC motor. The motor begins to rotate around 2-2.5 Volt while it's no-load current is around 20-30 mA [milli-Amperes]. It runs quiet,and with very low power. Motor rotates CW Rotating (Clock-Wise) and has two attached wire terminals. It makes a fine model car driver, a generator with a small windmill or some other great science or show and tell project. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only three available.
Mabuchi RE-26 Motor DC PM Dual Shaft CW Rotating Model Race Car Boat Driver [5 KB]


PM DC Motor Mabuchi RE-26 Dual Shaft
MFR: Mabuchi Electric Co.
Motor rotates CW [Clock-Wise]
Motor begins to rotate: 2-2.5 VDC
Motor current: 20-30 mAmp no load approx.
Connector: Integral Wire terminals
Size: 23.5 Dia, 30.5 L without shaft [mm]
Weight: 28 Grams
Shaft size: 2 mm Dia, 56 L [mm]


New Price: $10 each Four available
S/H included within continental US
