Motor DC Mitsumi 59C41395P01 Precision Shielded Pulley Bronze Bearings

This is a precisely made, miniature, shielded, replacement part DC motor with a pulley and bronze bearings. The motor begins to rotate at 2 Volt, while it's no-load current is around 30-40 milliamperes. It runs super quiet, and with very low power. It is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve. Only one available.

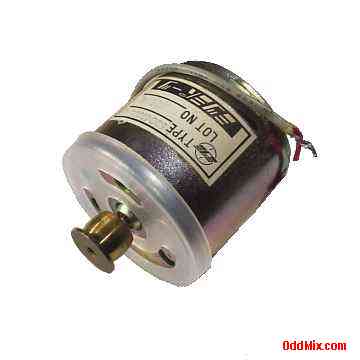

Mitsumi 59C41395P01 Precision Shielded DC Motor with Pulley Bronze Bearings [8 KB]


Magnetically shielded motor
Motor DC 59C41395P01 LOT No.: 0058A
MFR: Mitsumi Electric Co. Ltd. Made in Japan
Motor begins to rotate: 2 VDC
Motor current: approx. 30-40 mAmp - no load
Motor resistance: 25 Ohms - approx.
Bronze sleeve bearings Brass pulley
Shielded wire terminals
Size: 41 Dia, 48 L (with pulley) [mm]
Shaft Size: 3 mm Dia, 9 L [mm]
Weight: 142 Grams with leads


Used Price: $50 One available
S/H included within continental US
