Motor DC Pioneer CXM-026-A PM Replacement Shielded Miniature Bronze Bearings

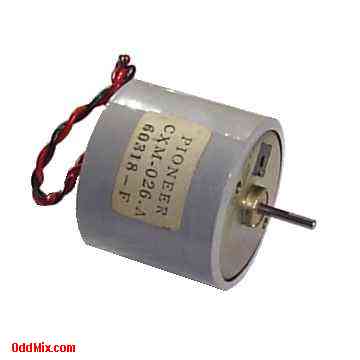

This is a precisely made, shielded, miniature Permanent Magnet [PM] DC motor with bronze bearings. The motor begins to rotate at 2 Volt, while it's no-load current is around 20-30 milliamperes. It runs super quiet, and with very low power. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve. Only one available.
Motor DC PM Pioneer CXM-026-A Replacement Shielded Miniature Bronze Bearings [6 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Pioneer CXM-026-A DC Motor
Magnetically shielded Bronze sleeve bearings
Motor begins to rotate: 2 VDC
Motor current: approx. 20-30 mA no load
Solder terminals wires attached
Size: 35 Dia, 45 L [mm]
Shaft Size: 2 mm Dia, 12 L [mm]
Weight: 280 Grams with leads

Notes:

Used Price: $40 One available
S/H included within continental US
