OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC Sanko 9V.M9I9OU26-1CW Assembly Pulley Bronze Bearings Shock Mount

This is a precisely made, miniature Permanent Magnet (PM) DC motor with a pulley and bronze bearings. The motor begins to rotate at 1 Volt, while it's no-load current is around 30-40 milliamperes DC. It runs super quiet, and with very low power. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve. Only one available.

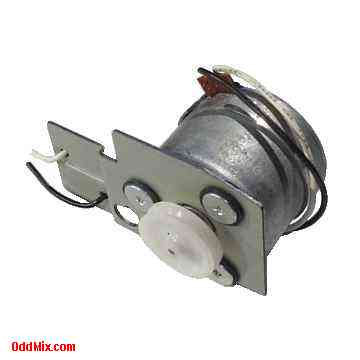

Sanko 9V.M9I9OU26-1CW DC motor pulley bronze bearings shock mount assembly [7 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

DC Motor Miniature Sanko 9V.M9I9OU26-1CW
Motor begins to rotate: 1 VDC
Motor current: approx. 30-40 mA no load
Motor resistance: 10 Ohms - approx.
Bronze sleeve bearings Solder terminals
Attached pulley Shock mounts
Size: 32 Dia, 37 L [mm] with pulley
Shaft size: 2 mm Dia, 5 L [mm]
Weight: 74 Grams with leads

Notes:

Used Price: $25 One available
S/H included within continental US
